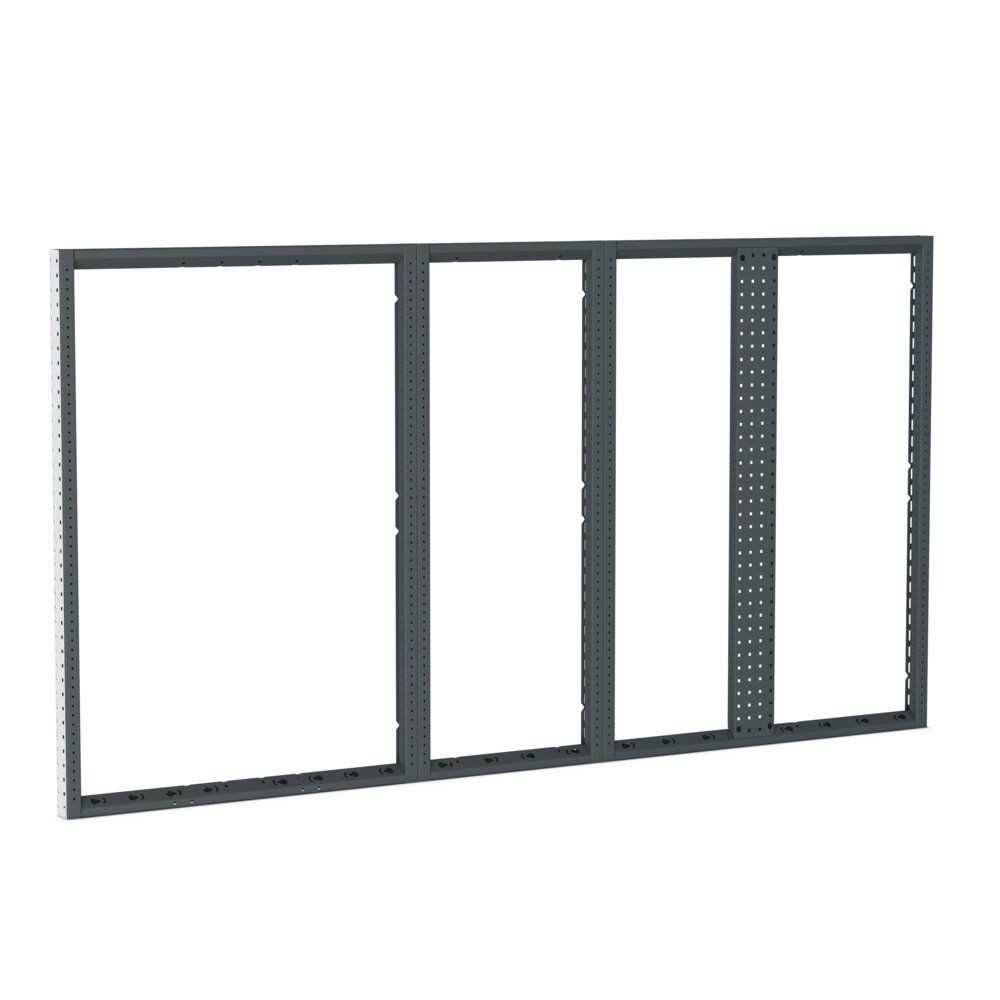

Product Details

Frame
1 x 46 1/8W x 59 1/4H frame
1 x 24 1/8W x 59 1/4H frame
1 x 41 5/8W x 59 1/4H frame
1 x 59 1/4H frame full internal wide upright
1 x fixing pack with van specific brackets

LH frame fits for 38 1/2W accessories
LH middle frame fits for 20 7/8W accessories
RH middle frame fits for 16 1/2W accessories
RH frame fits for 20 7/8W accessories

Compatability

Vehicle	Position	SKU
Mercedes Sprinter (2018 - present) Cargo Van Wheelbase: 170" Long/4325mm, High Roof, RWD/AWD, Sliding Door Right	Right Hand Rear	y66-mer-3-wb4-91-sdr

Specifications & Dimensions

Part No. (Erp)	19035225.19V
Width	111 3/4 inch
Depth	2 3/4 inch
Height	59 1/4 inch
Net Weight	127 lb
Ean Code	5039350248560
Product Material	Sheet steel
Main Color	Anthracite grey
Main Ral Color	RAL 7016
